WR10-WR2300 Magic Hybrid Tee

Place of Origin : China

Brand Name : CWJ

Certification : ISO9001

Price : Negotiation

Packaging Details : Wooden case or with outer carton, or as per customers' specific requirements.

Payment Terms : T/T; L/C

Supply Ability : 20 Piece/Pieces per month

Model Number : WMT

MOQ : 2PCS

Delivery Time : 25-30 work days

Contact Now

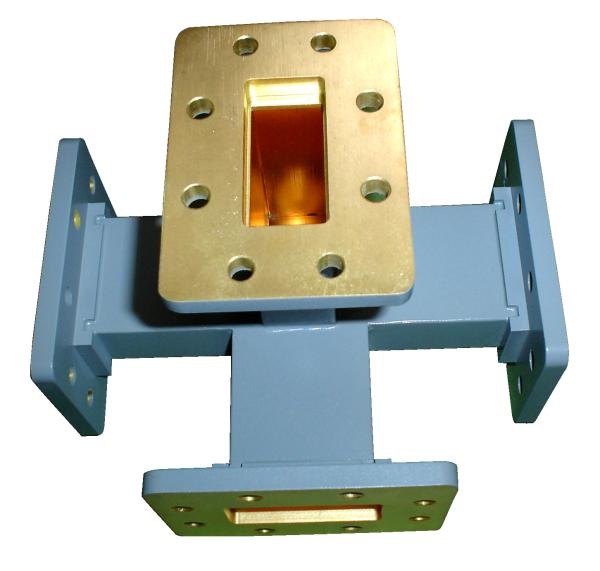

CWJ's Magic Hybrid Tee is four-port coupler for matching, balance and isolation. E-plane to H-plane Isolation is a function of the symmetry which is carefully balanced on each unit. If the E-plane port 4 or the H-plane port 2 are used as inputs the split is on the output collinear ports 1 and 3. When the input is E plane port 4 the outputs are out of phase 180 deg. When the input is H plane port 2 the outputs are in phase. The in-phase and equal amplitude signals inputting into two collinear ports can result combined signals at H-plane port and cancelled signal at E-plane port. This feature is widely used in monopulse antenna feed structure and phasing testing setup.

WR10-WR2300 Magic Hybrid Tee

Magic Hybrid Tee Product Range
MODEL NO	FREQ RANGE	OPERATING BAND WIDTH***	VSWR	ISO. (H&E ARMS)	UNBA- LANCE	WG TYPE (IEC/EIA)	FLANGE TYPE	MATERIAL	PDF Datasheet
MODEL NO	(GHz)	(%)	Max	(dB)	(dB) Max	WG TYPE (IEC/EIA)	FLANGE TYPE	MATERIAL	PDF Datasheet
CWJ3WMTA	0.32-0.49	10-15	1.30(H-Arm),1.50(E-Arm)	35	±0.25	R3/WR2300	FDP/FDM	Al
CWJ4WMTA	0.35-0.53	10-15	1.30(H-Arm),1.50(E-Arm)	35	±0.25	R4/WR2100	FDP/FDM	Al
CWJ5WMTA	0.41-0.62	10-15	1.30(H-Arm),1.50(E-Arm)	35	±0.25	R5/WR1800	FDP/FDM	Al
CWJ6WMTA	0.49-0.75	10-15	1.30(H-Arm),1.50(E-Arm)	35	±0.25	R6/WR1500	FDP/FDM	Al
CWJ8WMTA	0.64-0.98	10-15	1.30(H-Arm),1.50(E-Arm)	35	±0.25	R8/WR1150	FDP/FDM	Al
CWJ9WMTA	0.77-1.14	10-15	1.30(H-Arm),1.50(E-Arm)	35	±0.25	R9/WR975	FDP/FDM	Al
CWJ12WMTA	0.96-1.46	10-15	1.20(H-Arm),1.50(E-Arm)	35	±0.25	R12/WR770	FDP/FDM	Al
CWJ14WMTA	1.14-1.72	10-15	1.20(H-Arm),1.50(E-Arm)	35	±0.25	R14/WR650	FDP/FDM	Al
CWJ18WMTA	1.45-2.20	10-15	1.20(H-Arm),1.50(E-Arm)	35	±0.25	R18/WR510	FDP/FDM	Al
CWJ22WMTA	1.72-2.60	10-15	1.30(H-Arm),1.50(E-Arm)	35	±0.4	R22/WR430	FDP/FDM	Al/Cu
CWJ26WMTA	2.17-3.30	10-15	1.30(H-Arm),1.50(E-Arm)	35	±0.4	R26/WR340	FDP/FDM	Al/Cu
CWJ32WMTA	2.60-3.95	10-15	1.30(H-Arm),1.50(E-Arm)	35	±0.4	R32/WR284	FDP/FDM	Al/Cu
CWJ40WMTA	3.30-4.90	10-15	1.20(H-Arm),1.30(E-Arm)	35	±0.4	R40/WR229	FDP/FDM	Al/Cu
CWJ48WMTC	3.95-5.85	10-15	1.20(H-Arm),1.30(E-Arm)	35	±0.4	R48/WR187	FDP/FDM	Al/Cu
CWJ58WMTC	4.90-7.05	10-15	1.20(H-Arm),1.30(E-Arm)	35	±0.4	R58/WR159	FDP/FDM	Al/Cu
CWJ70WMTC	5.85-8.20	10-15	1.20(H-Arm),1.30(E-Arm)	35	±0.4	R70/WR137	FDP/FDM	Al/Cu
CWJ84WMTC	2.60-3.95	10-15	1.20(H-Arm),1.30(E-Arm)	35	±0.4	R84/WR112	FBP/FBM/FBE	Al/Cu
CWJ100WMTC	8.20-12.4	10-15	1.20(H-Arm),1.30(E-Arm)	35	±0.4	R100/WR90	FBP/FBM/FBE	Al/Cu
CWJ120WMTC	10.0-15.0	10-15	1.20(H-Arm),1.30(E-Arm)	35	±0.4	R120/WR75	FBP/FBM/FBE	Al/Cu
CWJ140WMTC	12.4-18.0	10-15	1.20(H-Arm),1.30(E-Arm)	35	±0.4	R140/WR62	FBP/FBM/FBE	Al/Cu
CWJ180WMTC	15.0-22.0	10-15	1.20(H-Arm),1.30(E-Arm)	35	±0.4	R180/WR51	FBP/FBM/FBE	Al/Cu
CWJ220WMTC	18.0-26.5	10-15	1.20(H-Arm),1.50(E-Arm)	35	±0.4	R220/WR42	FBP/FBM/FBE	Al/Cu
CWJ260WMTC	22.0-33.0	10-15	1.20(H-Arm),1.50(E-Arm)	35	±0.4	R260/WR34	FBP/FBM/FBE	Al/Cu
CWJ320WMTC	26.3-40.0	10-15	1.20(H-Arm),1.50(E-Arm)	35	±0.4	R320/WR28	FBP/FBM/FBE	Al/Cu
CWJ400WMTC	32.9-60.1	10-15	1.50(H-Arm),1.60(E-Arm)	20	±0.5	R400/WR22	FUGP	Cu
CWJ500WMTC	39.2-59.6	10-15	1.50(H-Arm),1.60(E-Arm)	20	±0.5	R500/WR19	FUGP	Cu
CWJ620WMTC	49.8-75.8	10-15	1.50(H-Arm),1.60(E-Arm)	20	±0.5	R620/WR15	FUGP	Cu
CWJ740WMTC	60.5-91.9	10-15	1.50(H-Arm),1.60(E-Arm)	20	±0.5	R740/WR12	FUGP	Cu
CWJ900WMTC	73.8-112	10-15	1.50(H-Arm),1.60(E-Arm)	20	±0.5	R900/WR10	FUGP	Cu
